The VTSA series valve island, the innovative work of Hengli Gas, leads the market with multi-interface and bus communication technology. Flexible configuration, easy installation, support for a variety of protocols to ensure efficient and stable operation, widely used in the field of automation control.
Pneumatic control scheme: VTSA valve island
VTSA series valve islands, equipped with plate and half-tube solenoid valves, with multiple interfaces and fieldbus interfaces, support high level communication, optional functions, easy installation, suitable for a variety of scenarios.
01 VTSA product features
? IO-Link interface and Sub-D multi-pin interface are optional.
? Multiple fieldbus interfaces such as EtherCAT, ProfiNet/IP are available.
? Different electrical connections can be achieved by replacing the electrical control box.
? IO-Link provides fault diagnosis function.
? Optional quick connector.
? Multiple pressure zones can be realized.
? An internal or external pilot air source is achieved within the same air path plate by using short and short plugs.
? Manual operation, button lock.
? Plate and half-tube valves are optional.
? Plate valves with working air ports on the bottom can be used for control cabinet installation to reduce assembly and installation time.
? Easy installation with built-in screws and seals.
? Easy to change the connection mode.
? LED display for quick troubleshooting.

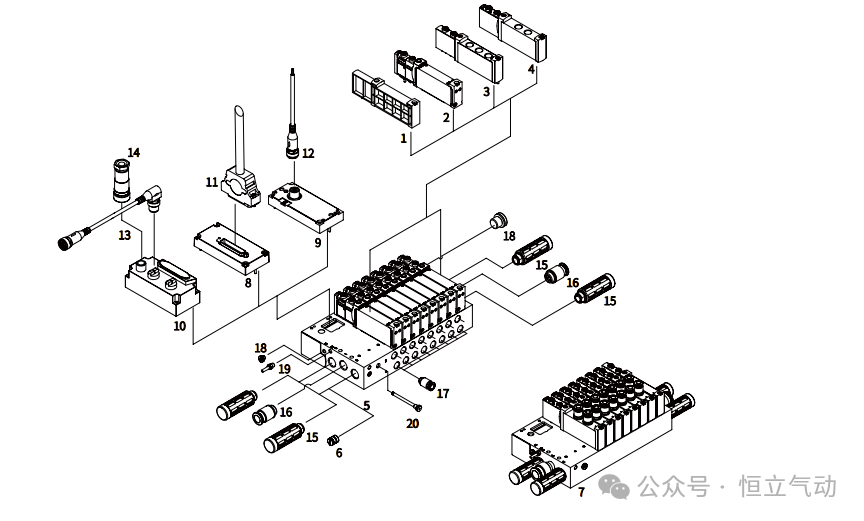

02 List of peripheral components

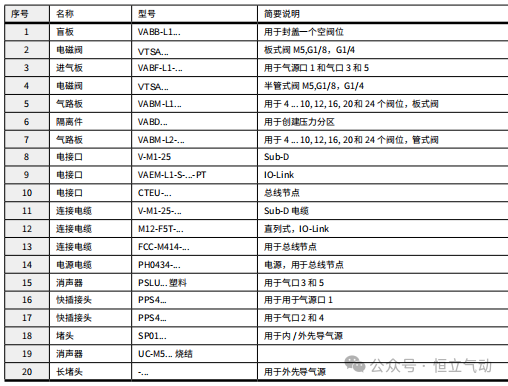

03 Installation components and accessories list
